整机分类 |
 |
|
|
|

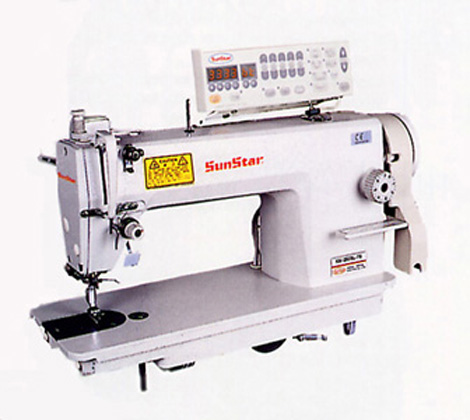

单针高速自动剪线平车
sunstar KM-250BL/-7
中 ●全回转2倍大旋梭
●剪线结构简单合理，故调整方便
●考虑从中厚料到厚料范围的缝制面设计出来的传动结构使缝制效果更完美
●强有力的倒缝继电器使倒缝时亦能保持针脚的美观性

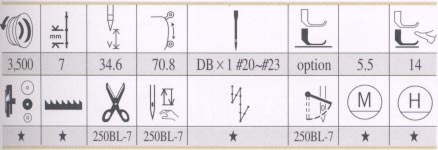

规 格
|
MODEL |
KM-250BL |
KM-250BL-7S |
KM-250BL-7N |
|
LOCK STITCH TYPE |
Drop Feed |
|
APPLICATION |
Heavy Material |
|
MAX.SEWING SPEED |
3,500spm(Commercial Use:3,000spm) |
|
MAX.STITCH LENGTH |
7mm |
|
NEEDLE STROKE |
34.6mm |
|
THREAD TAKE-UP STROKE |
70.8mm |
|
HEIGHT OF
PRESSER FOOT |
BY HAND |
5.5mm |
|
BY KNEE |
14mm(Max.) |
|
BY AUTOMATIC |
Max.14mm(Optional) |
|
HOOK |
Full Rotary Vertical Large Hook |
|
NEEDLE |
DB×1 #20~#23 |
|
TRIMMING DEVICE |
- |
Provided |
Provided |
|
MOTOR |
Clutch Motor |
Servo Motor |
N.P. Motor |
|
|
|
|
|
